| 加工定制：是 | 品牌：WIKA | 型号：WIKA 983 |
| 类型：膜盒压力表 | 公称直径：100mm | 测量范围(MPa)：100 |
| 环境温度(℃)：10 | 精度等级：1 | 联接型式：G1/2 |
| 类型： | 隔膜压力表 | 联接型式： | G1/2 |
| 型号： | 983 BSZ | 精度等级： | 1 |
| 品牌： | WIKA/威卡 | 环境温度： | -20-60（℃） |
| 加工定制： | 是 | 公称直径： | 63 100 160（mm） |
| 测量范围： | 0-100（MPa） | ? | ? |
WIKA 983 圆筒型隔膜型密封，带集成温度测量，
螺纹连接，DIN 11851
Sterile Process Connection, Diaphragm In-line Seal
Model 983, with Integrated Temperature Measurement

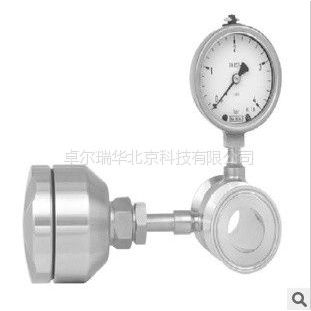

Model 983.52 with Pressure Gauge Model 232.50 NS 63 and
Temperature Transmitter in the Field Case Connection Head
Model BVA
Model 983.22 with Pressure Transmitter Model S-10 and
Temperature Transmitter in the Field Case Connection Head
Model BSZ
Applications
Pressure and temperature measurement in pipelines
For flowing, pure media
Food and beverage industry
Biochemical and pharmaceutical industry, production of active ingredients
Special Features
Pressure and temperature measurement in one measuring location
Completely round diaphragm (Europ. Pat. No. 0609846) to avoid dead spaces
Self-draining in all mounting positions
Quick measuring point cleaning without residues
Suitable for SIP and CIP
Description
Process connection
Model 983.18: male thread DIN 11 851
Model 983.22: Tri-clamp
Model 983.50: male thread NEUMO BioConnect
Model 983.51: male thread DIN 11 864-1 form A
Model 983.52: Clamp per DIN 32 676
Model 983.53: Clamp per *** 2852
Nominal sizes (DN) see dimensions overleaf
Pressure rating
PN 40 up to DN 50 resp. DN 2"
PN 25 from DN 65 resp. DN 2?"
Suitable pressure ranges
0 ... 0.6 bar to 0 ... 25 resp. 40 bar
Material of wetted parts
Stainless steel 1.4435 (316L)
Instrument connection
Gauges directly welded, transmitter with adaptor screwed
Temperature measurement
with Pt100, 4 wire
Temperature ranges 0 ... +50 °C to 0 ... +150 °C
