| 加工定制：是 | 品牌：WIKA | 型号：WIKA 981.51 |
| 类型：膜盒压力表 | 公称直径：100mm | 测量范围(MPa)：100 |
| 环境温度(℃)：10 | 精度等级：1 | 联接型式：G1/2 |
| 类型： | 隔膜压力表 | 联接型式： | 无菌连接带DIN11 864标准螺纹接口 |
| 型号： | 981.51 | 精度等级： | 1 |
| 品牌： | WIKA/威卡 | 环境温度： | -20-60（℃） |
| 加工定制： | 是 | 公称直径： | 63 100 160（mm） |
| 测量范围： | 0-100（MPa） | ? | ? |
WIKA 981.51 圆筒型隔膜密封，无菌连接带DIN11
864标准螺纹接口
Sterile Process Connection, Diaphragm In-line Seals
for Food, Biochemical and Pharmaceutical Industry
Aseptic connection per DIN 11 864, Model 981.51

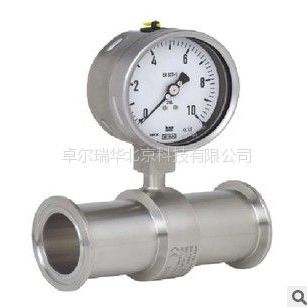

Diaphragm In-line Seal, Aseptic Connection DIN 11 864-3
Model 981.51 with Pressure Gauge Model 232.50 NS 100
Applications
For direct, fast installation and removal in pipelines
For flowing, pure media
Food and beverage industry
Biochemical and pharmaceutical industry, production of active ingredients
Painting lines
Special Features
Completely round diaphragm (Europ. Pat. No. 0609846) to avoid dead spaces
Self-draining in all mounting positions
Quick measuring point cleaning without residues
Suitable for SIP and CIP
3A and EHEDG certified
Description
Process connection
Aseptic threaded pipe connection per DIN 11 864-1
Aseptic flanged connection per DIN 11 864-2
Aseptic clamp connection per DIN 11 864-3
Nominal sizes (DN) see dimensions starting page 3
Pressure rating
See dimensions starting page 3
Pressure ranges
0 ... 0.6 bar to 0 ... 25 or 40 bar
Material of wetted parts
Stainless steel 1.4435 (AISI 316L)
Instrument connection
Pressure gauge or transmitter directly welded, process pressure transmitter with threaded adaptor
System fill fluid
KN 7 Glycerine, food compatible, FDA approved, according to standard US Pharmacopoeia XXIV and European Pharmacopoeia (1998)
