| 加工定制：是 | 品牌：WIKA | 型号：WIKA 981.18 |
| 类型：膜盒压力表 | 公称直径：100mm | 测量范围(MPa)：100 |
| 环境温度(℃)：10 | 精度等级：1 | 联接型式：G1/2 |
| 类型： | 隔膜压力表 | 联接型式： | 带DIN11 851标准的螺纹接口 |
| 型号： | 981.18 | 精度等级： | 1.0 |
| 品牌： | WIKA/威卡 | 环境温度： | -20-100（℃） |
| 加工定制： | 是 | 公称直径： | 63 100（mm） |
| 测量范围： | 0-100（MPa） | ? | ? |
WIKA 981.18 圆筒型隔膜密封 带DIN11
851标准的螺纹接口 隔膜表
Sterile Process Connection, Diaphragm In-line Seals
for Food, Biochemical and Pharmaceutical Industry
Threaded Coupling Model 981.18 ... 981.21

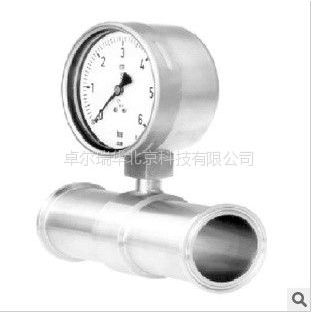

Diaphragm In-line Seal Model 981.18 with Male Thread and
Pressure Gauge Model 232.50 NS 100
Diaphragm In-line Seal Model 981.18 with Male Thread and
Pressure Transmitter Model S-10
Applications
For direct, fast installation and removal in pipelines
For flowing, pure media
Food and beverage industry
Special Features
Completely round diaphragm (Europ. Pat. No. 0609846) to avoid dead spaces
Self-draining in all mounting positions
Quick measuring point cleaning without residues
Suitable for CIP
EHEDG tested
Description
Process connection
Male thread, on both sides
Model 981.18: threaded coupling DIN 11 851
Model 981.19: threaded coupling SMS standard
Model 981.20: threaded coupling IDF standard
Model 981.21: threaded coupling APV-RJT standard
Nominal sizes (DN) see dimensions overleaf
Pressure rating
PN 40 bar for DN 20 ... DN 50 resp. DN 1" ... DN 2"
PN 25 bar from DN 65 resp. DN 2?"
Suitable pressure ranges
0 ... 1 bar to 0 ... 25 resp. 40 bar
Material of wetted parts
Stainless steel 1.4435 (316L)
Instrument connection
Gauges directly welded, transmitter with adaptor screwed
Fill fluid
KN 7 Glycerine, food compatible, FDA approved, according to standard US Pharmacopoeia XXIV and European Pharmacopoeia (1998)
