加工定制：是	品牌：wika	型号：y-60 y-100
类型：真空压力表	公称直径：60 100 150mm	测量范围(MPa)：-100-100mpa
环境温度(℃)：-20-70	精度等级：1.5	联接型式：1/8”和1/4”NPT

ZR中国Y-67,Y-90,Y-120真空压力表及压力真空抽水机锅炉干衣设备用

21/2”, 31/2”&41/2”经济服务型系列压力表
21/2”, 31/2”, & 41/2” Economic Service Pressure Gauge

Y-067 Y-090 Y-120

产品简介PRODUCT OVERVIEW

21/2”，31/2”，&41/2”系列一般压力表，是一种经济型的测量一般介质压力的仪表，可测量真空和混合压力，测量压力达5000psi。适用于水、油、空气或其他非腐蚀性介质。抽水机、锅炉、调整器，干衣机等商业及工业设备。
21/2”, 31/2”, & 41/2” series General Service Pressure Gauge is an economic pressure gauge for normal medium, to measure vacuum and mix pressure up to 5000psi.It is applied to water, oil, air, gas or other non-corrosive medium.

   主要技术参数Specifications
    公称直径:21/2”, 31/2”&41/2”Y-067  Y-090  Y-120
    Diameter:21/2”, 31/2”&41/2”Y-067  Y-090  Y-120

    精度等级± 3/2/3%（超过全量程的一半后存在±2%误差）国内1.5%
    Accuracy: ± 3/2/3% (there is ± 2% error when the pressure overrun half of the full scale of value )
    测量范围0 to 30 Hg VAC；联程30”Hg to 400psi；0 to 5,000psi
    Range: 0 to 30 Hg VAC; mix range 30”Hg to 400psi; 0 to 5,000psi
    连接螺纹1/8”和1/4”NPT，其它见选型表
    Connection: 1/8”and 1/4”NPT, See type table
    仪表外壳21/2”、31/2”铁壳喷黑塑，41/2”铁壳电镀
    Case: 21/2”, 31/2” iron case with black plastic painted;41/2” iron plating case.
    波登管及仪表接头铜合金波纹管与磷铜接头锡焊接
    Bourdon tube & socket: Copper alloy tube with phosphor copper socket, soft soldering
    仪表机芯铜合金

    Internals: Copper alloy
    仪表玻璃21/2”、31/2”有机玻璃旋紧式 41/2”平板塑料玻璃带金属紧固圈
    Window: 21/2”, 31/2” plain plastic, screw fixed;41/2” plain plastic glass with metal fixing loop
    仪表度盘标准度盘及铝制白地黑字PSI和KPa双刻度盘
    Dial: Aluminium, white with black marks, double scale of PSI and Kpaother non-corrosive medium.

    部分量程规格代码表 TABLE OF RANGES
    选型代码code 量程规格ranges
    M160 2.5 MPa        M180 4.0 MPa         M200 6.0 MPa
    M220 10 MPa         M230 16 MPa          M240 25 MPa
    M270 40 MPa         M280 60 MPa          M290 100 MPa
    M500 -0.1～0 MPa    M510 -0.1～0.06 MPa  M520 -0.1～0.15 MPa
    M530 -0.1～0.3 MPa  M540 -0.1～0.5 MPa   M550 -0.1～0.9 MPa
    M560 -0.1～1.5 MPa  M570 -0.1～2.4 MPa   M010 0.06 MPa
    M030 0.1 MPa        M040 0.16 MPa        M060 0.25 MPa
    M080 0.4 MPa        M100 0.6 MPa         M120 1.0 MPa
    M140 1.6 MPa

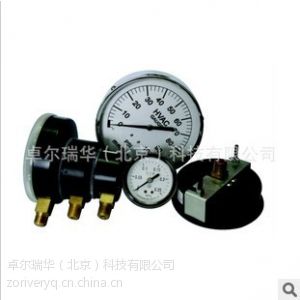

产品展示 Production 可选仪表类型 Types available 型号标示 Type code
径向直接安装Bottom mounting代码 code：AO ( )

    21/2”，Φ 67 Y-067. AO. 204 (Y67MS)
    31/2”，Φ 90 Y-090. AO. 204 (Y98 时代)
    41/2”，Φ 120 Y-120. AO. 204 (Y120MS)

    轴向直接安装 Back mounting代码 code：ZO (Z)
    31/2”，Φ 90 Y-090. ZO. 204 (Y90Z/MSa)

轴向U 型卡子安装Back U clamp mounting 代码 code：ZK

轴向前带边安装Back panel mounting with front flange代码 code：ZT

    21/2”，Φ 67 Y-067. ZK. 204 (Y67ZK MSa)
                 Y-090. ZK. 204 (Y90ZK/MSa)
    31/2”，Φ 90 Y-067. ZT. 204 (Y67ZT/MSa)
                 Y-090. ZT. 204 (Y90ZT/MSa)

可选择型号 Type code

Y-067.AO.204 (Y67MS) Y-067.ZT.204 (67ZT MSa)

Y-090.AO.204 (Y98 时代) Y-090.ZK.204 (Y90ZK MSaK) Y-090.ZO.204 (90Z MSa)

Y-120.AO.204 (Y120MS)

几何尺寸 DIMENSIONS

Y-090. ZO. 204 (Y90Z MSa)

Y-090. ZK. 204 (Y90ZK MSa K) Y-067. ZT. 204 (Y67ZT MSa)

Y-120. AO. 200 (Y120 MS)

   如何选型 HOW TO ORDER
    型号代码特性说明CODE CHARACTERISTICS
    基本型号Basic typeY 接液材质铜合金一般压力表
    外径Diameter:067 Ф 67mm (2.5”)
                 090 Ф 90mm (3.5”)
                 120 Ф 120mm (4.5”)

    安装方式:AO 径向直接安装Bottom mounting
             ZO 中轴向直接安装Back mounting
             ZT 中轴向前边安装 Back mounting with front flange
             ZK 中轴向卡子安装 Back U clamp mounting
    设计代码:200 铁外壳、罩壳上紧式
             204 铁外壳有机玻璃旋紧式
    量程Ranges:M120 1MPa （其它规格详见量程代码表 See range table）
    连接螺纹Connection:M14 M14 × 1.5 G38=G3/8 Z18 NPT1/8 Z14=NPT1/4
    备选项Options
      GKD 电镀处理Plating           TPB 特殊仪表盘面 Special dial
      PHD 缓冲螺钉 Buffer screw     GHA 4% 银焊 silver soldering
      SKB SUS304 外壳 case          FWP 加不锈钢位号牌 Stainless Steel label
      BEA 1.6 级精度 Accuray 1.6%
